SKU: TDA080-NS-LF

Electric Tape Dispenser fluor-coated rollers 3.15 inch Wide - TDA080-NS-LF

There may be a lead time on this product
Regular price $2,569.10


Shipping Estimate

Ship estimate is for commercial locations, residential will be higher.

Description

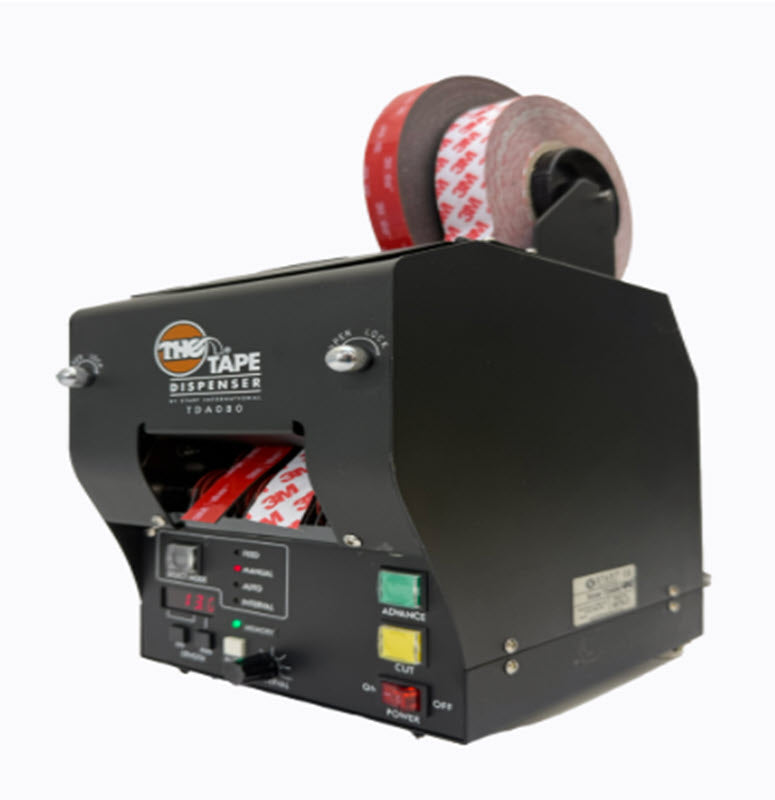

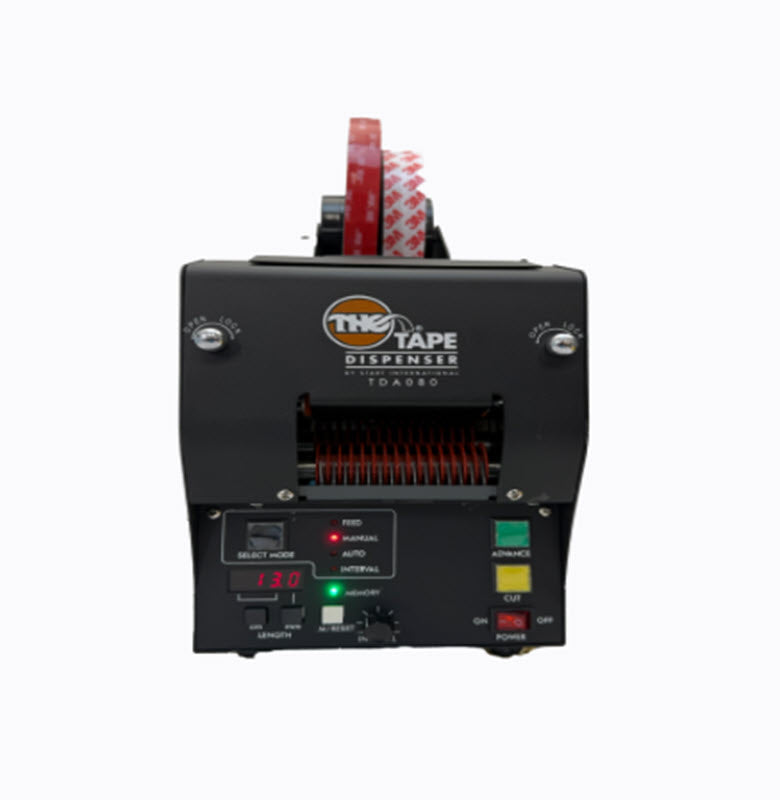

START International TDA080-NS-LF: High-Performance Industrial Tape Dispenser

The START International TDA080-NS-LF is a premier heavy-duty electric tape dispenser specifically engineered for high-volume production environments. Designed to handle the most challenging materials, this industrial-strength machine ensures seamless operation for demanding manufacturing and packaging lines.

Optimized for High-Adhesive and Technical Tapes

Unlike standard dispensers, the TDA080-NS-LF features specially fluor-coated rollers. These non-stick rollers are essential for the smooth dispensing of high-tack and complex technical tapes, including:

  • VHBô and ACX high-bond adhesives
  • Double-sided foam and PET cloth tapes
  • Fleece and specialty industrial films
RECOMMENDED to get a test done on your product, contact us for details.

Precision Digital Programming and Accuracy

Eliminate waste and improve consistency with digital length programming. The TDA080-NS-LF allows operators to set exact specifications, dispensing and cutting tapes up to 3.15 inch wide with a high precision accuracy of +/- 1mm. The unit comes standard with a 3inch core to accommodate most industrial tape rolls.

Four Versatile Modes of Operation

To maximize workflow efficiency, the TDA080-NS-LF offers four distinct dispensing modes to suit any repetitive taping task:

  • Manual Feed / Manual Cut: Full operator control for custom tasks.
  • Manual Feed and Cut: One-touch dispensing and shearing.
  • Auto Feed and Cut: Automatic advancement for rapid-fire applications.
  • Interval Feed and Cut: Timed dispensing for synchronized assembly lines.
Features:

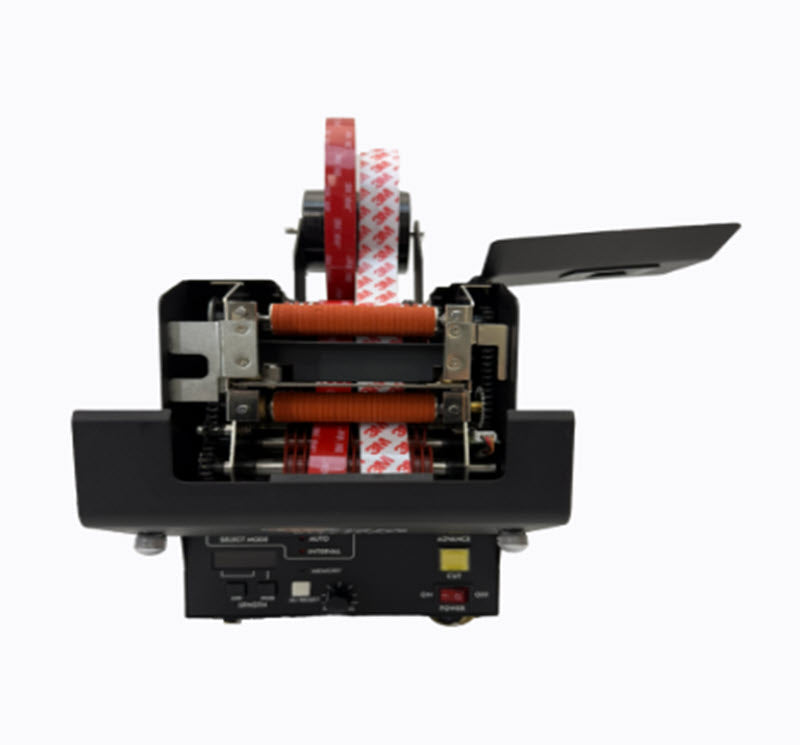

  • Modified TDA080 with special flat tape advancement rollers for high tack foil tapes
  • Automatically dispenses and cuts most types of tape
  • Designed for continuous, industrial-use applications
  • Compact design and heavy duty metal construction
  • Accepts tape widths from .25" to 3.15"
  • Cut lengths from 1.6" to 394"
  • Accuracy /- .04" (dependent on type of tape)
  • 9 inch maximum outside diameter roll
  • Digital push switch display for easy length adjustments
  • Comes with standard 3" core
  • Adjustable feed intervals
  • Safety interlock
  • Can dispense some non-adhesive materials
  • Switchable voltage (115V or 230V)
  • Four operating modes (Manual Feed / Manual Cut, Manual Feed & Cut, Auto Feed & Cut and Interval Feed & Cut)
  • Optional foot switch available, contact us for details.
  • Optional serrated cutting blade for thick tapes, TDA080279FS
Specifications:
  • Tape Width - .25 to 3.15
  • Cut Length - 1.6 to 394
  • Max Outside Diam of Roll - 9
  • Core - 3
