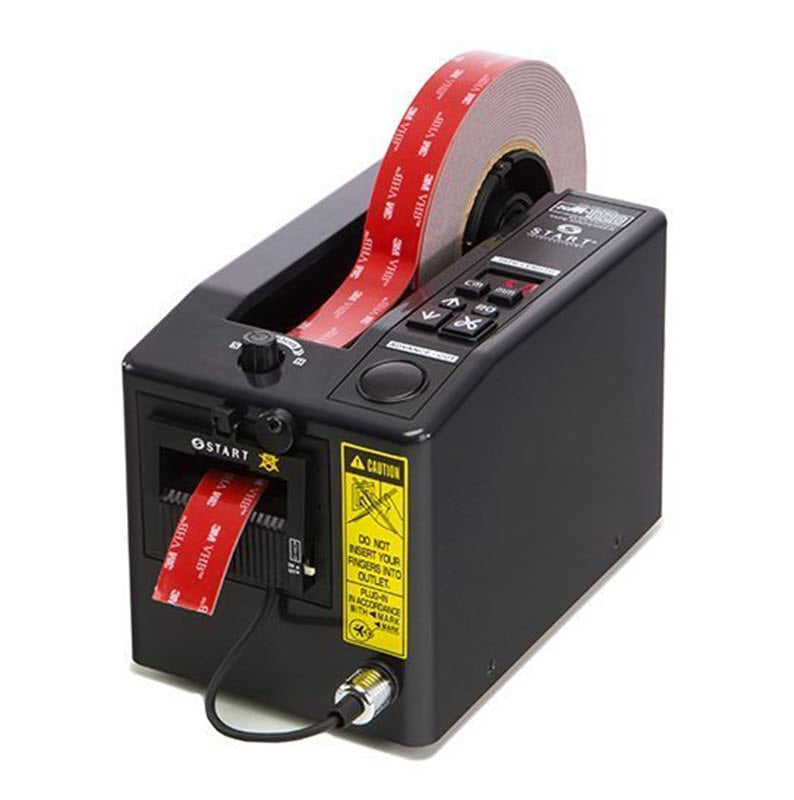

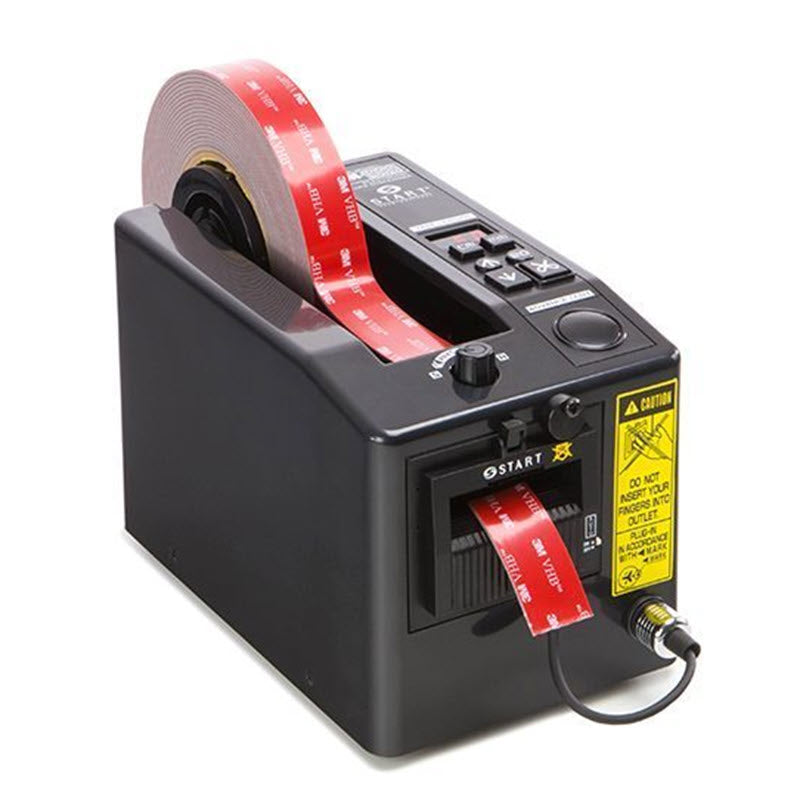

Electric Tape DIspenser - ZCM1000NS - for double sided and VHB tapes

ZCM1000NS Electric Tape Dispenser - Start International

The ZCM1000-NS Electric Tape Dispenser is designed for high-production industrial applications involving foam tapes such as VHB. This Start International dispenser automatically cuts and advances tape using a built-in photosensor that detects tape position. It also offers manual cut-and-feed operation via push-button control. The adjustable feed roller pressure accommodates various tape thicknesses, and the non-stick rollers ensure smooth operation. Program your desired length digitally for precise dispensing with ±1 mm accuracy.

RECOMMENDED: Send in a roll of your tape to be tested, to be sure that it will work with this dispenser. Contact us for details.

Features

• Non-stick rollers for foam tape handling
• Auto feed & cut for medium to high production facilities
• Digital length adjustment with LED display
• Accepts tape widths from 0.28" to 2" (7 to 50.8 mm)
• Dispenses tape lengths from 0.79" to 39" (20 to 999 mm)
• Photocell or manual push-button feed & cut
• Blades rated for up to 200,000 cuts (material dependent)
• Durable steel frame and flame-retardant antistatic cabinet
• Includes 3-in-1 core: 3" (76 mm), 35 mm, 1" (25 mm)
• Adjustable pressure roller for tape thickness variation
• Accuracy of tape length: ±0.04" (1 mm)
• Compatible with many available accessories

Included

• ZCM1000NS Electric Tape Dispenser
• Product Manual
• Safety Guard
• Silicone Oil
